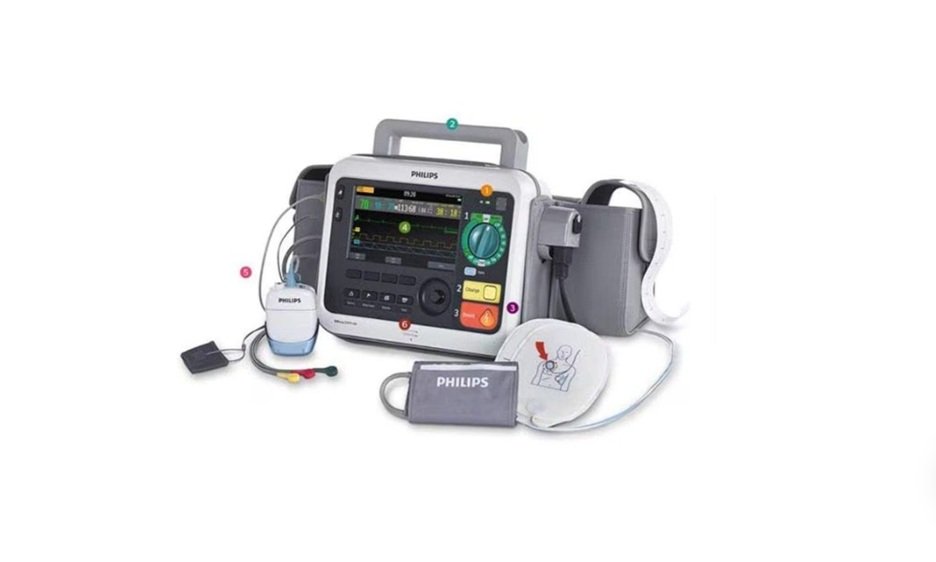

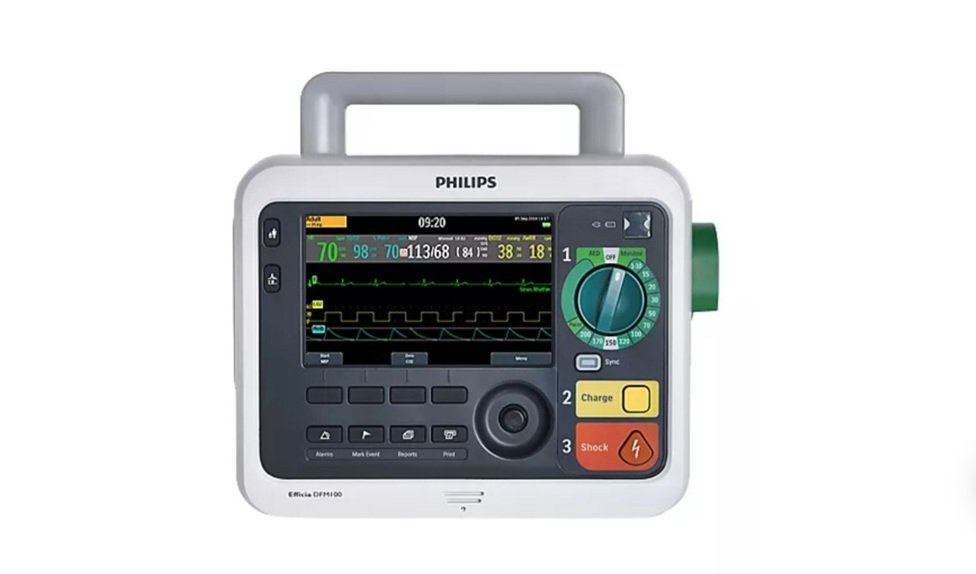

Philips Efficia DFM100 Biphasic Defibrillator with Recorder

Philips Efficia DFM100 Biphasic Defibrillator : Product description
The Philips Efficia DFM100 combines the best of portability, ease of use, and powerful biphasic
technology to provide optimal treatment during cardiac emergencies. This device delivers effective
defibrillation and monitoring to ensure that you can act swiftly and confidently in life-threatening
arrhythmias.
With its compact form and clear visual indicators, it’s designed to provide immediate feedback and
clear communication to healthcare teams, ensuring that every shock delivered is accurate and timely.
Whether in the emergency room, on the ambulance, or at a healthcare facility, the DFM100 offers top
tier performance and safety.

Key Features:
Affordable Care: Delivers quality and reliability proven in over 1 million Philips defibrillators sold
worldwide, optimizing cost-of-ownership.
Customizable Configurations: Available in basic defibrillator or fully-featured options with AED
mode, pacing, and monitoring parameters.
Ease of Use: Consistent user interface across hospital and EMS versions minimizes staff
training time and operational complexity.
Complete Treatment Package: Designed for quick, informed decisions across patient care
from emergency scenes to hospital transport and treatment.
Field-Proven Technology: Built with Philips’ trusted technology, offering scalability in features
while maintaining affordability and reliability in both pre-hospital and hospital settings.

Hospital Benefits:
Reliable and Fast Response: The Philips Efficia DFM100 enables healthcare providers to make
quick decisions, providing life-saving shocks when every second counts.
Optimized for Critical Care Environments: Designed for both emergency and intensive care
units, it ensures high uptime and optimal performance during patient stabilization.
User-Friendly Design: Reduces training time for medical staff and minimizes human error with
an intuitive interface and clear display.

Country of Origin
(COO)
China
Product Condition Brand New
Estimated Delivery 3-7 Days
Installation Not Required
Warranty 1 Year, From
Manufacturer
Brand Philips Healthcare
Portable: Easily moved between departments, emergency rooms, or ambulances, making it
versatile for various emergency care scenarios.

Technical Specifications:
Power: Rechargeable Lithium Ion battery; AC power with a grounded outlet
Standard Operator Position: Within 1 meter (3 feet) of the device
Display:
Type: Color TFT LCD
Size: 7-inch diagonal (17.8 cm)
Resolution: 800 x 480 pixels (VGA)
Brightness: 32 levels per color
Sweep Speed: 25 mm/s for ECG/SpO2; 6.25 mm/s for capnogram
Wave Viewing Time: 6.5 sec ± 10>
Defibrillator:
Waveform: Biphasic Truncated Exponential (adjusted for patient impedance)
Shock Delivery: Via multifunction electrode pads or paddles
Charge Time:
<5 sec to 150 Joules (adult) with a full battery
<24 sec (AED mode with full battery, even after 15 discharges)
<15 sec (manual mode with full battery)
Power On Time:
<15 sec with AC power
<6 sec to 200 Joules with a full battery
Shock Series: Configurable energy escalation
Patient Impedance Range:
Maximum: 250 ohm (external)
Minimum: 25 ohm (external)
Dimensions: 23.5 x 29 x 20.5 cm, 9.25 x 11.4 x 8 inch
Weight (without battery): 5.66 kg (12.5 lbs)

Content in the box
Philips Efficia DFM100 Defibrillator
Defibrillation Pads
Battery Charger
User Manual
Carrying Case
ECG Cables

Warranty

The Philips Efficia DFM100 Biphasic Defibrillator comes with a 1-year manufacturer warranty.

Philips Efficia DFM100 Biphasic Defibrillator : Specifications
Product Condition 
Estimated Delivery
Warranty 
Brand New
3-7 Days
1 Year From Manufacturer
Application Area
Emergency Rooms (ER): Fast-paced environments where quick defibrillation can save lives.
Ambulances: Portable, ensuring that defibrillation can be performed in transit to a hospital.
Intensive Care Units (ICU): Monitors critically ill patients and provides life-saving shocks when
necessary.
Brand/Manufacturer
Brand Philips Healthcare
Product General Specifications
Product Name Philips Efficia DFM100 Biphasic Defibrillator with Recorder
Product Model Efficia DFM100
Patient Category Dual (Adult & Pediatric – with switch or pediatric pads)
Qty./BOX 1
Technical Specifications
Defibrillator Energy Level 200 J
Defibrillator Parameters AED
ETCO2
NBP
Spo2
Printer / Recorder Yes
Automatic Analysis Yes
Defibrillation Waveform Technology Biphasic
Self Testing Function  Yes
CPR Coaching  No
CPR Feedback  No
AED Prompts ( User Guidance)  Voice
Weight & Dimensions
Product Dimension (mm) 235 x 290 x 205
Product Weight 5.66 Kg
Display and User Interface
Screen Size (Diagonal) 5.1”-8” Inch
Display Type  Color TFT LCD
Touchscreen  No
Power Supply & Battery
AC Input Voltage 100-240VAC,50-60HZ
Battery Type  Lithium Ion rechargeable
Product Certificates
Product Certification European CE

General Hospitals: Used across departments for immediate cardiac care.
How It Works
Patient Connection: Attach the defibrillation pads to the patient’s chest.
ECG Monitoring: The device automatically detects the patient’s heart rhythm and displays it on
the screen.
Shock Delivery: In case of life-threatening arrhythmia, the device recommends the appropriate
shock energy and delivers it.
Data Monitoring: Vital signs such as heart rate, SpO2, and ECG are continuously monitored.
Post-Event Data Storage: All patient data and shock history are stored for future medical review
and compliance.
How to use
Power on the Device: Press the power button to activate the Philips Efficia DFM100.
Prepare the Patient: Attach the defibrillation pads to the patient’s chest, ensuring they are
placed correctly.
Analyze Heart Rhythm: The device automatically reads the ECG, indicating whether
defibrillation is necessary.
Select Shock Energy: The recommended energy level will appear on the screen; the device
adjusts automatically based on the patient’s needs.
Administer Shock: Press the “Shock” button to deliver the defibrillation shock.
Monitor Patient: Continuously monitor vital signs using the touchscreen interface.
Post-Event Analysis: Review stored data for clinical follow-up.
FAQ
How long does the battery last on the Philips Efficia DFM100?
The battery typically lasts for up to 6 hours in standby mode and can handle multiple shocks before
requiring recharging.
Can the defibrillator be used on pediatric patients?
Yes, the device can be used on both adult and pediatric patients with appropriate settings.
Is the device easy to transport?
Yes, the DFM100 is lightweight and compact, making it easy to carry from one location to another.
Care & Maintenance
Routine Checkups: Regularly inspect the device for wear and tear, particularly the defibrillation
pads and cables.
Battery Maintenance: Charge the device regularly to ensure that it is fully operational during
emergencies.
Software Updates: Periodically check for firmware updates to enhance performance and ensure
compliance with the latest standards.

Quick Tips
Regular Battery Testing: Ensure that the device’s battery is fully charged and functional before
each shift.
Proper Pad Placement: Always double-check the placement of the defibrillation pads for
effective shock delivery.
Data Review: Use the stored data to review patient history and ensure accurate treatment
decisions.
Manufacturer and Marketer Details
Philips Goldway (Shenzhen) Industrial Inc.
No.2 Keji North 3rd Road, Nanshan District,
518057 Shenzhen, P.R. China

References
Philips Efficia DFM100 Biphasic Defibrillator Manufacturer Official Website :

Disclaimer
This content is written and audited by our biomedical product expert for professional guidance about
this product. It is not a substitute for medical consultation or treatment advice. Always consult a
qualified healthcare provider regarding medical conditions or treatment.
