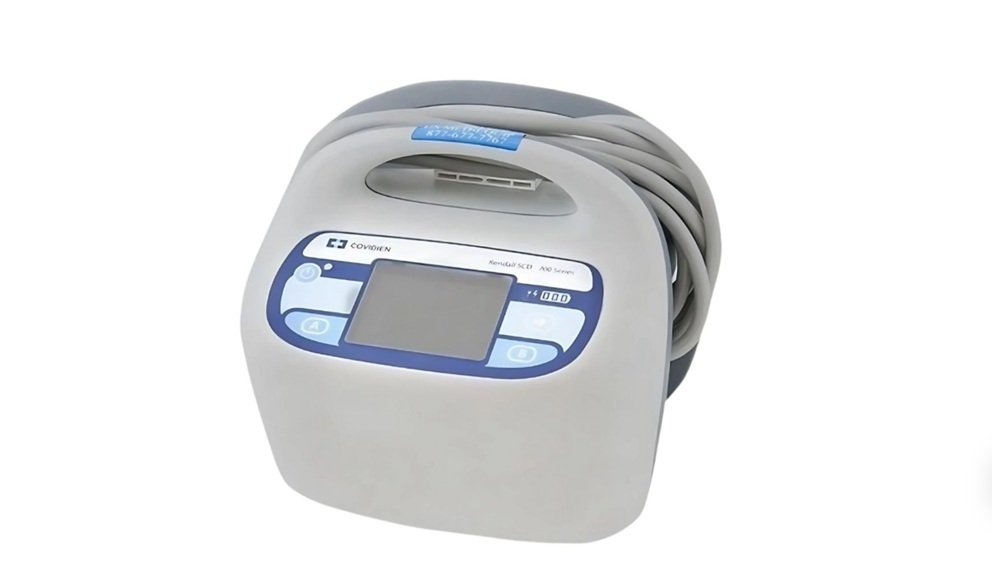

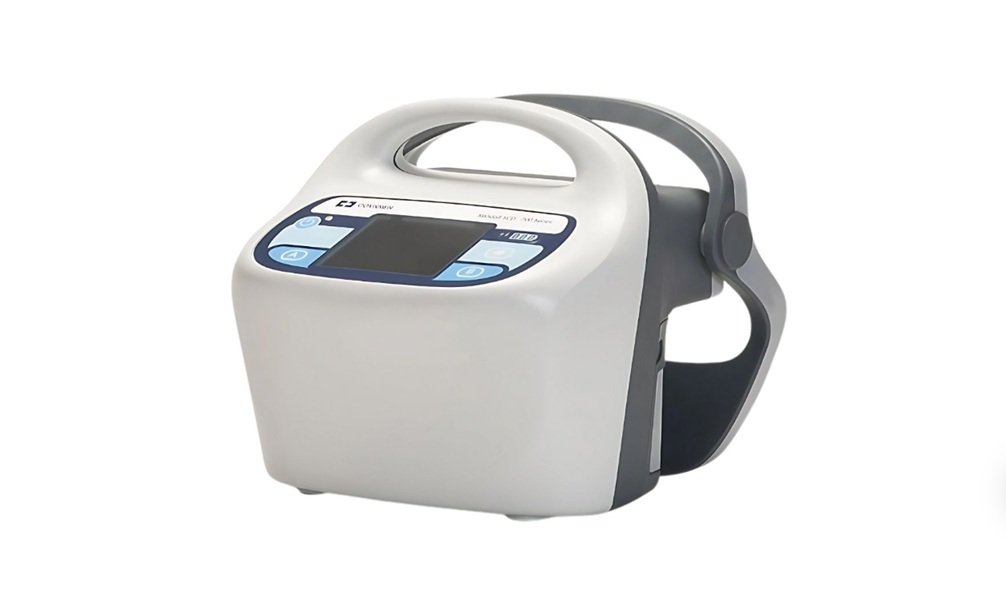

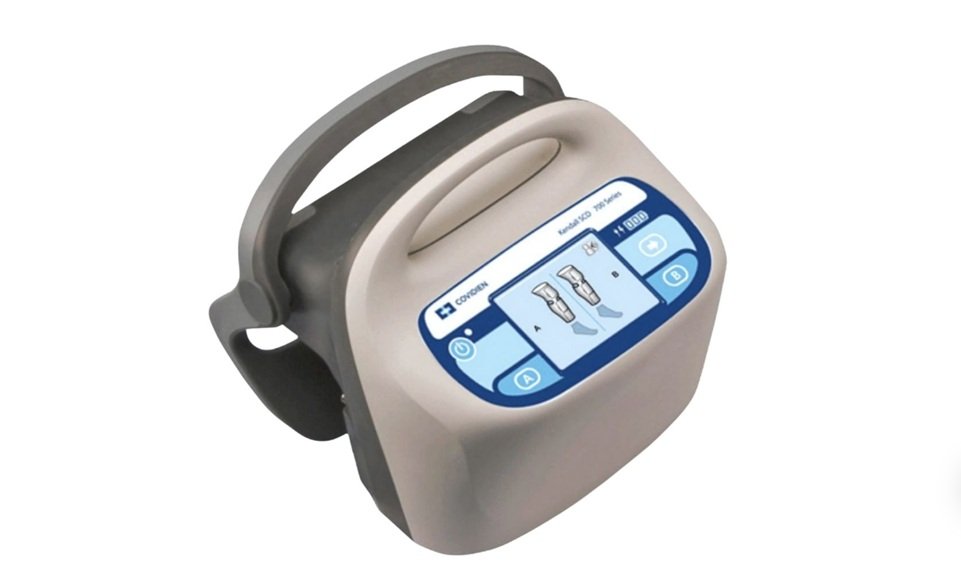

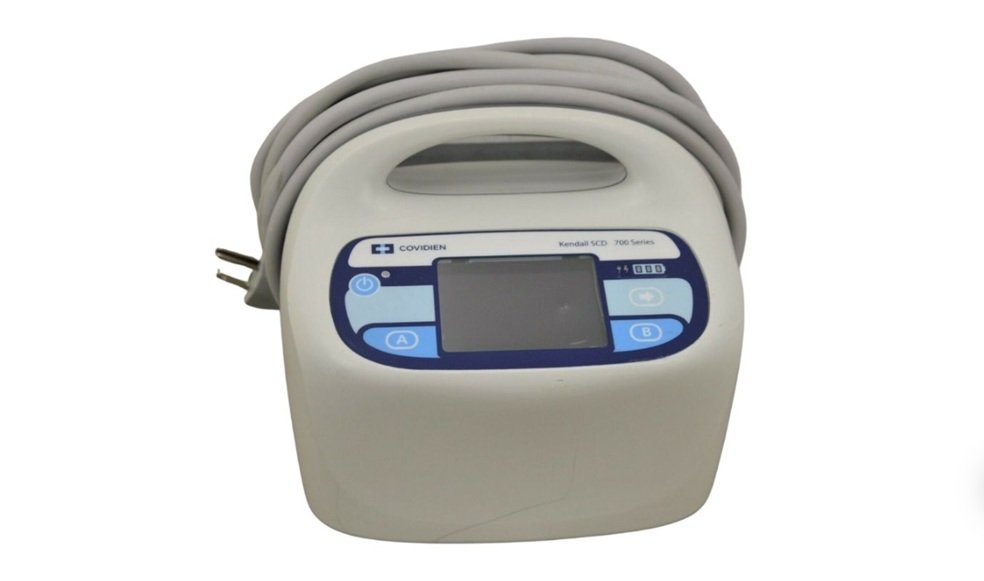

Covidien Kendall SCD 700 DVT Pump

Description

The Kendall SCD 700 is an advanced sequential compression system that uses Vascular
Refill Detection (VRD) to automatically adjust compression cycles based on the patientʼs real
time blood flow. This enables significantly higher blood movement (up to ~76% more) and
more effective clot prevention. It features patient detection and compliance tracking, one
touch operation, and a 3.2-inch color LCD with animated alerts for easy monitoring.
Designed for clinical environments, it offers ultra-quiet ICU-grade performance, durable IP
protected build, internal battery backup, and smart alerts for therapy management. Ideal for
ICU, surgical recovery, and high-risk patients, it delivers precise, personalized, and clinically
optimized compression therapy.
Key Features:
Animated Alarm Resolution: When something needs attention, you’ll know exactly what it
is and what to do. Animated icons make the message clear at a glance, no guesswork
involved.
Durability (IPX3 Protection): Real clinical environments aren’t always gentle, and this
device is built with that in mind. It handles the occasional splash without missing a beat,
backed by a stable power setup and a battery that’s built to last.
Noise Reduction: Nobody in a care setting needs more background noise. Vibration
dampening and soft internal materials keep things running quietly, so patients can rest
without interruption.
Smooth, Easy-to-Clean Design: The body is deliberately free of grooves and hard-to
reach edges, so wiping it down takes seconds — exactly what busy clinical staff need.
Large 3.2″ Color Display: The bright LCD screen with oversized icons means you’re not
squinting or second-guessing. Everything is easy to read, whether you’re across the room
or working in low light.
Cleaning Compatibility: It’s built to hold up against the strong disinfectants hospitals
actually use, so you don’t have to worry about the cleaning routine damaging the device
over time.
One-Touch Start Operation: Press one button, and you’re up and running. No setup
process, no steps to remember — just straightforward operation from the moment you
need it

USB Port for Updates: As needs evolve, so can the device. The USB port makes software
updates simple, keeping everything current without any complicated process.
Adjustable Bed Hook: Fits securely on most standard beds, with enough flexibility in
placement that it actually works in your specific setup, not just in theory.
Technical Specifications:
Power Supply: 110240V with an 8-hour battery backup.
Pressure Levels: 45 mmHg (ankle), 40 mmHg (calf), and 30 mmHg (thigh).
Interface: Simple 4-button operation with a graphical user interface.
Cleaning Requirements: Use a soft cloth with mild detergent for cleaning.
Durability: IPX3 water-resistant rating ensures long-term hospital use.
Content in the box
Kendall SCD 700 Series Controller
Leg Sleeves Available in knee and thigh-length options)
Tubing Set
Power Cord (for AC power)
User Manual
Compliance Meter (built into the controller)
Cleaning Instructions
Warranty
The Covidien Kendall SCD 700 DVT Pump comes with a 1-year manufacturer warranty.
Covidien SCD 700 DVT Pump : Specifications
Product Condition 
Estimated Delivery
Warranty 
Brand/Manufacturer
Brand New
37 Days
1 Year From Manufacturer
Brand Covidien
Product General Specifications
Product Name
Product Model
Qty./BOX
Important Key Features
Type of Compression Pump
Pressure Range (mmHg)
Display and User Interface
Covidien Kendall SCD 700 DVT Pump
SCD 700
1
DVT Pump
6 mmHg
Screen Size Diagonal) 3”5” Inch
Display Type 
Touchscreen 
Power Supply & Battery
LCD Screen
No
AC Input Voltage
100240VAC,5060HZ

Port and Interfaces
Ports
Application Area
USB
Surgical Patients: Ideal for post-surgery recovery to prevent blood clots.
Stroke Patients: Proven to reduce DVT risk and improve survival in stroke patients.
Immobile Patients: Helps prevent DVT in patients with limited movement.
Hospital Use: Suitable for ICUs, recovery rooms, and post-operative care.
How It Works
Compression: The system applies sequential pressure to the leg, starting at the ankle 45
mmHg), moving to the calf 40 mmHg), and ending at the thigh 30 mmHg).
Vascular Refill Detection (VRD): Measures venous refill time and customizes compression
cycles accordingly.
Mimics Walking: Alternating compression stimulates blood flow similar to walking,
improving circulation.
Prevents Blood Stasis: Sequential compression reduces the risk of clots forming in the
veins.
How to use
Select Sleeve Size: Measure the patientʼs thigh or calf circumference to choose the right
sleeve.
Apply Sleeve: Wrap the sleeve around the leg, securing it with Velcro, leaving a two-finger
gap.
Connect Controller: Attach the tubing to the sleeve and the controller.
Power On: Press the power button to start the therapy, and the system will automatically
adjust to the sleeve.
Monitor Compliance: Track wear time and therapy effectiveness using the compliance
meter.
FAQ
How do I choose the right sleeve size?
Measure the patientʼs thigh or calf circumference and refer to the sizing chart for the correct
fit.
Can the system be used for all patients?
It is ideal for patients at risk of DVT, especially post-surgery, immobile, and stroke patients.
How do I clean the system?
Clean the controller and tubing with a cloth dampened with mild detergent, and avoid excess
liquid near connection points.
Does the system have a battery backup?
Yes, the system can run for up to 8 hours on battery power if there is no available outlet.
How does vascular refill detection work?
It detects the time it takes for veins to refill after compression, then adjusts the compression
cycle to optimize blood flow.
Care & Maintenance
How can we help you today?
Chat
Cleaning: Wipe the controller and tubing with a soft cloth dampened with mild detergent.
Check Tubing: Ensure tubing is securely connected and free from kinks.

Battery Care: Recharge the controller if using battery power (up to 8 hours of backup).
Regular Inspection: Check for wear and tear on sleeves and tubing before use.
Quick Tips
Correct Sleeve Fit: Ensure the sleeve fits properly to avoid discomfort and ensure
effective compression.
Avoid Knee Compression: Position the sleeve gap correctly to prevent compression on
the knee.
Monitor Compliance: Use the built-in compliance meter to ensure the patient is using the
device as prescribed.
Prevent Hazards: Secure tubing to avoid tripping or tangling risks.
