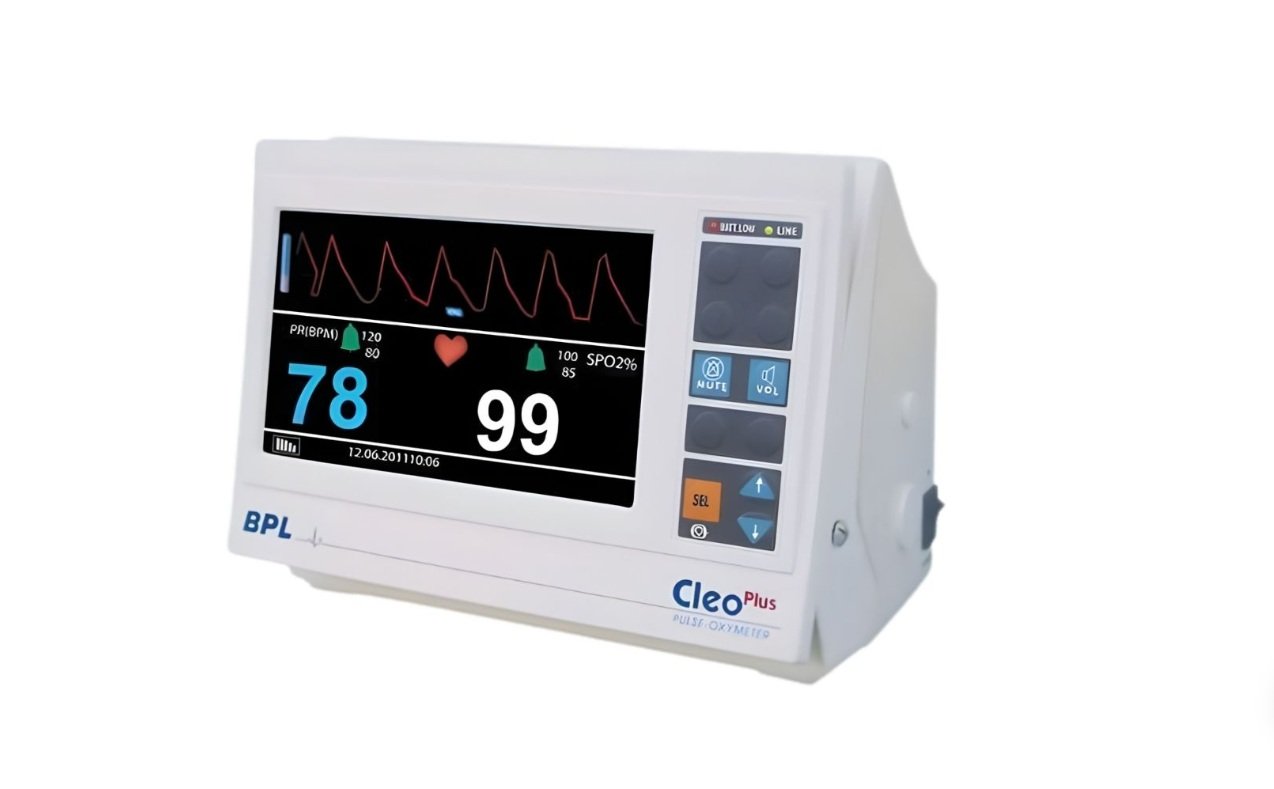

BPL Cleo Plus Pulse Oximeter

BPL Cleo Plus Pulse Oximeter :
Product description
The BPL Cleo Plus Pulse Oximeter is a compact, hospital-grade
monitoring device designed for accurate measurement of blood
oxygen saturation (SpO₂) and pulse rate. It features a 7-inch color
TFT display for clear visualization of patient data, including
waveform and trends. Equipped with CNS connectivity, it enables
centralized monitoring in clinical environments. The device also
includes advanced alarm systems and pitch tone variation for realtime
alerts. It is ideal for continuous monitoring in critical care
settings.
Key Features:
7” TFT LCD display with LED backlight
Real-time SpO₂ and pulse rate monitoring
24-hour trend data storage
Plethysmograph waveform display
Audio & visual alarm system
Pitch tone variation for SpO₂ changes
CNS (Central Nursing Station) connectivity
Rechargeable battery with up to 120 mins backup
Optional Dolphin module
User Benefits:
Ensures accurate and continuous patient monitoring
Helps in early detection of oxygen level changes
Large display improves readability
Central monitoring reduces manual workload
Portable and easy to handle
Enhances patient safety with alerts
Technical Specifications:

Writing Speed: 25 mm/sec
Alarms: Visual (Bell) & Audio
Freeze Function: On demand
Keyboard: Flat type
CNS Connector: 9-pin D-sub connector
Trend Storage: 24 hours
Power Adapter: 15V DC / 1.5A (BPL supplied)
AC Input Range: 100 – 264 V AC
Power Consumption: < 22 VA
Battery Type: Rechargeable NiMH
Battery Capacity: 9.6V / 1800 mAh
Battery Backup: Up to 120 minutes (fully charged)
Dimensions: 23.5 × 17.4 × 14.0 cm
Weight: Approx. 2.5 kg
Content in the box
BPL Cleo Plus Pulse Oximeter
SpO₂ finger probe with cable
AC-DC adapter
Patient cable
Fuse
User manual
Warranty
BPL Cleo Plus Pulse Oximeter comes with a 1 year manufacturer
warranty.
BPL Cleo Plus Pulse Oximeter :
Specifications
Product Condition

Brand New

Brand/Manufacturer
Manufacturer BPL Medical Technologies Private
Limited
Brand BPL Medical
Product General Specifications
Product Name BPL Cleo Plus Pulse Oximeter
Product Model Cleo Plus
Qty./BOX 1
Weight & Dimensions
Product Dimension
(mm)
235 X 174 X 140
Product Weight 2.5 Kg
Display and User Interface
Screen Size
(Diagonal)
5.1”-8” Inch
Display Type  Color TFT LCD
Touchscreen  No
Power Supply & Battery
AC Input Voltage 100-240VAC,50-60HZ
Battery capacity 1800mAh
Battery Type  Rechargeable Ni-MH battery
Technical Specifications
Pulse Oximeter Types Tabletop
Arrhythmia Detection No

Hospitals
ICUs
Clinics
Operation theatres
Emergency care units
How It Works
Emits light through the fingertip using sensors
Measures light absorption in blood
Calculates SpO₂ using photoplethysmography
Detects pulse rate from blood flow changes
Displays readings and waveform on screen
Activates alarms when limits are exceeded
How to use
Connect the device to power supply
Attach the finger probe to the patient
Turn on the device
Wait for stable readings
Monitor SpO₂ and pulse rate
Adjust alarm settings if needed
